| DR90 Ventilating Dehumidification System |
 |
Honeywell TrueDRY Whole-House Dehumidifiers are designed to help maintain proper humidity levels in the home. Lower humidity levels feel more comfortable, and helps safeguard against problems from excess moisture in the home such as mold, mildew, warped wood, peeling of paint, or musty odors. Honeywell TrueDRY Whole Home Dehumidification Systems are Energy Star rated providing efficient and economical operation.
Dehumidification
The Honeywell TrueDRY DR90 dehumidifier utilizes refrigeration and internal air circulation to cool the incoming air stream below its dew point. Water condenses and drains off the coil, sending drier air back into the house.
• Can remove up to 90 pints/day of moisture.
• Energy Star rated
• Electrocoating reduces coil corrosion and helps prevent refrigerant leaks
• Top or side ducted exhaust
• Reduced noise during operation
• MERV 11 air filtration
Ventilation
The Honeywell TrueDRY DR90 has a separate control for ventilation, so the powerful onboard blower can be used to efficiently bring fresh air into the house even when dehumidification is not needed. The TrueDRY DR90 has a 6” supply side damper that can be used to duct in air from the outside, or closed if not needed.
Simplified Wiring
The Honeywell TrueDRY DR90 dehumidifiers can be controlled by a variety of 24-volt remote wired and wireless controls. The TrueDRY DR90 allows the use of a 24V normally closed float switch or water sensor to simplify installation in a drain pan. This will allow the external float switch to kill power to the compressor in the event of water blockage. |
DR90 Capacities and Performance
| Part Number: |
DR90A2000 |
| Blower: |
262 CFM @ 0.0 in. WG
106 CFM @ 0.6 in. WG |
| Supply Voltage: |
220VAC;60Hz |
| Amps: |
5.9 A |
Power transformer
to R/C terminals: |
24 VAC, 0.85A |
| Energy performance: |
2.9 liters (6.1 pints) per kilowatt hour (KWH) Energy |
| Refrigerant: |
R-410A |
Operating Temp Range
(outside cabinet): |
34 – 135 oF (1.1 – 57.2 oC) |
| Capacity: |
54 pints/day (60 oF [15.6 oC], 60 %RH)
73 pints/day (70 oF [21.1 oC], 60 %RH)
90 pints/day (80 oF [26.7 oC], 60 %RH) |
| Coverage: |
Up to 2800 sq. ft. |
| Duct Connections: |
6 in. Supply Inlet
10 in. Round Inlet
10 in. Round Outlet
(ABS Plastic) |
| Filter Efficiency: |
Standard MERV-11 |
| Drain Connection: |
3/4 in. threaded female NPT, with attached 3/4 in. threaded male NPT |
| Dimensions (See Fig. 1): |
Width: 14-3/8 in.
Height: 19-3/8 in.
Length: 25-13/16 in. (without collars)
32-3/16 in. (with collars)
Weight: 82 lbs (37.2 Kg) |
| Shipping Specs |
Width: 18-1/2 in.
Height: 21-1/2 in.
Length: 40 in.
Weight: 93 lbs (42.2 Kg) |
| Optional Parts |
| Replacement Filter |
50070171-002 |
| Motorized Ventilation Damper |
EARD6 |
| 10” Backdraft Damper |
SPRD10 |
| Compressor Relay, 24 VAC, 30 A |
50035445-014 |
| Compressor Run Capacitor |
50070171-001 |
| 10” Duct Collar |
50049536-005 |
| Fan Assembly |
50049537-006/
DR90XFAN1 |
| Capacitor - Fan |
50070204-001/
DR90XCFA1 |
| Fan Relay, SPDT, 24 VAC, 15A |
50035445-011 |
| Transformer 120/24 VAC, 40 VA |
50035445-013 |
| Defrost Thermostat |
50070204-002 |
| Leveling Foot |
50035445-019 |
|
| ETL Listed. Energy Star Rated. Conforms to UL Std. 474. |
| For more information call 1-800-468-1502 or visit our website at customer.honeywell.com. |
|
 |
| DR55-AP Ventilating Dehumidification System |
 |
DR55-AP Capacities and Performance
| Part Number: |
DR55-AP |
| Blower: |
160cfm@0.0 in.WG
160cfm@0.6 in.WG |
| Supply Voltage: |
120VAC; 60Hz |
| Amps: |
2.1A |
Power transformer
to R/C terminals: |
20 VAC. 0.85A |
| Energy performance: |
2.4 Liters (5.1 pints) per Kilowatt hour (KWH) Energy |
| Refrigerant: |
R-410A |
Operating Temp Range
(outside cabinet): |
34 – 135 oF (1.1 – 57.2 oC) |
| Capacity: |
20 pints/day (60?F ﹝15.6?C﹞, 60%RH)
40 pints/day (70?F ﹝21.1?C﹞, 60%RH)
55 pints/day (80?F ﹝26.7?C﹞, 60%RH) |
| Coverage: |
1800 sq.ft |
| Duct Connections: |
8in . Round Inlet
8in . Round Outlet |
| Filter Efficiency: |
Standard MERV-11 |
| Drain Connection: |
3/ 4 in . threaded female NPT, with attached 3/ 4 in , threaded male NPT |

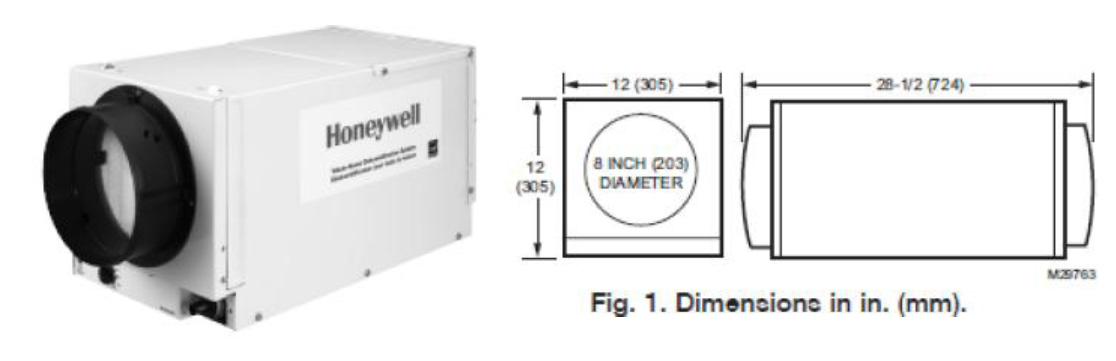

| Dimensions (See Fig. 1): |
Width: 12in
Height: 12in
Length: 28-1/ 2in
Weight: 55Ibs ( 25 kg ) |
| Shipping Specs |
Width: 15in
Height: 16in
Length: 31in
Weight: 65Ibs ( 29.6 kg ) |
| Optional Parts |
| Compressor Relay, 24 VAC, 30A |
50049537-002 |
| 8in Duct Collar |
50049537-004 |
| Replacement filter: |
50049537-005 |
| Fan |
50033205-004 |
Fan Relay, SPDT, 24VAC, 15A |
50035445-011 |
|
|
|
 |
|
