Comfortable Environment

Honeywell Commerical Air Cleaner Model
Full Function Air Cleaner
Big Air 2 Full Function Air Cleaner Model #KJ800
Industrial Grade Air Cleaner
Home Air Care Products
Dehumidifier





HW-IND-E4-W Type
Suspension System
Model
HW-IND-E4
D / W
CFM (CMH)
2000 (4000)
Weight (kg)
D(122), W(188)
Efficiency (%)
95.0
Voltage
220V Single Phase 50/60Hz
Dimension L*W*H
(mm) including
Flange
D(590*945*750)
W(908*990*1015)
Air Inlet / Outlet
(mm)
D(600*400)
W(580*360)
Flange above
ground (mm)
D(275), W(580)
lonizer
1
Collector
1
Ionizer Voltage
DC 14kV
Collector Voltage
DC 7kV
Electric Heater (H)
Water Pump (W)
0.5HP, 5.1A
Water Capacity (I)
30
Pipe Size
Inlet pipe (20mm),
Drain pipe (25mm)
Max Current (A)
D(5A), W(30A)



HW-IND-E8-W Type
Suspension System
Model
HW-IND-E8
D / W / H
CFM (CMH)
4500 (8000)
Weight (kg)
D(196), W(285), H(217)
Efficiency (%)
95.6
Voltage
220V Single Phase 50/60Hz
Dimension L*W*H
(mm) including
Flange
D(1015*945*750)
W(1335*990*1015)
H(1035*990*950)
Air Inlet / Outlet
(mm)
D(600*400)
W(580*360)
H(600*400)
Flange above
ground (mm)
D(275), W(580), H(480)
lonizer
2
Collector
2
Ionizer Voltage
DC 14kV
Collector Voltage
DC 7kV
Electric Heater (H)
1.3kW * 2
Water Pump (W)
0.5HP, 5.1A
Water Capacity (I)
34
Pipe Size
Inlet pipe (20mm),
Drain pipe (25mm)
Max Current (A)
D(5A), W(30A), H(30A)



HW-IND-E12-W Type
Free Standing System
Model
HW-IND-E12
D / W / H
CFM (CMH)
6000 (12000)
Weight (kg)
D(281), W(364), H(320)
Efficiency (%)
93.5
Voltage
220V Single Phase 50/60Hz
Dimension L*W*H
(mm) including
Flange
D(1555*945*750)
W(1777*990*1300)
H(1475*990*950)
Air Inlet / Outlet
(mm)
D(600*400)
W(580*360)
H(600*400)
Flange above
ground (mm)
D(275), W(770), H(480)
lonizer
2
Collector
4
Ionizer Voltage
DC 14kV
Collector Voltage
DC 7kV
Electric Heater (H)
1.3kW * 4
Water Pump (W)
0.5HP, 5.1A
Water Capacity (I)
67
Pipe Size
Inlet pipe (20mm),
Drain pipe (25mm)
Max Current (A)
D(5A), W(40A), H(40A)

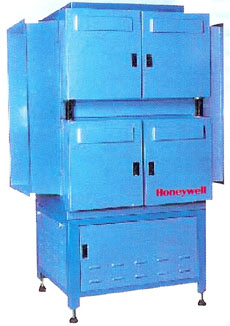

HW-IND-E16-W Type
Free Standing System
Model
HW-IND-E16
D / W
CFM (CMH)
8000 (16000)
Weight (kg)
D(397), W(479)
Efficiency (%)
93.0
Voltage
220V Single Phase 50/60Hz
Dimension L*W*H
(mm) including
Flange
D(1015*945*1400)
W(1335*990*1915)
Air Inlet / Outlet
(mm)
D(600*1045)
W(580*1000)
Flange above
ground (mm)
D(275), W(770)
lonizer
4
Collector
4
Ionizer Voltage
DC 14kV
Collector Voltage
DC 7kV
Electric Heater (H)
Water Pump (W)
1HP, 8.5A
Water Capacity (I)
71
Pipe Size
Inlet pipe (20mm),
Drain pipe (25mm)
Max Current (A)
D(10A), W(40A)
